Mondraker

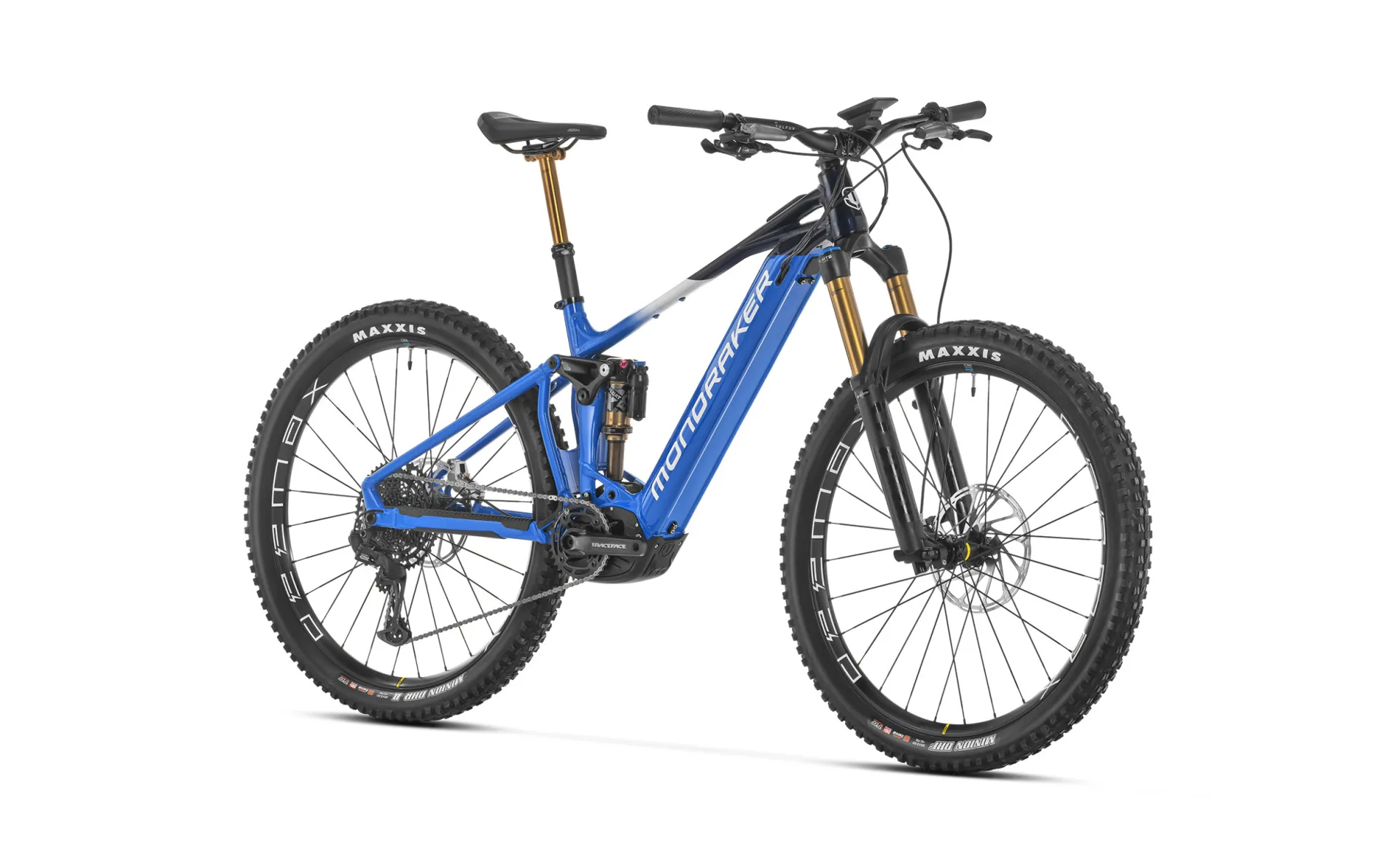

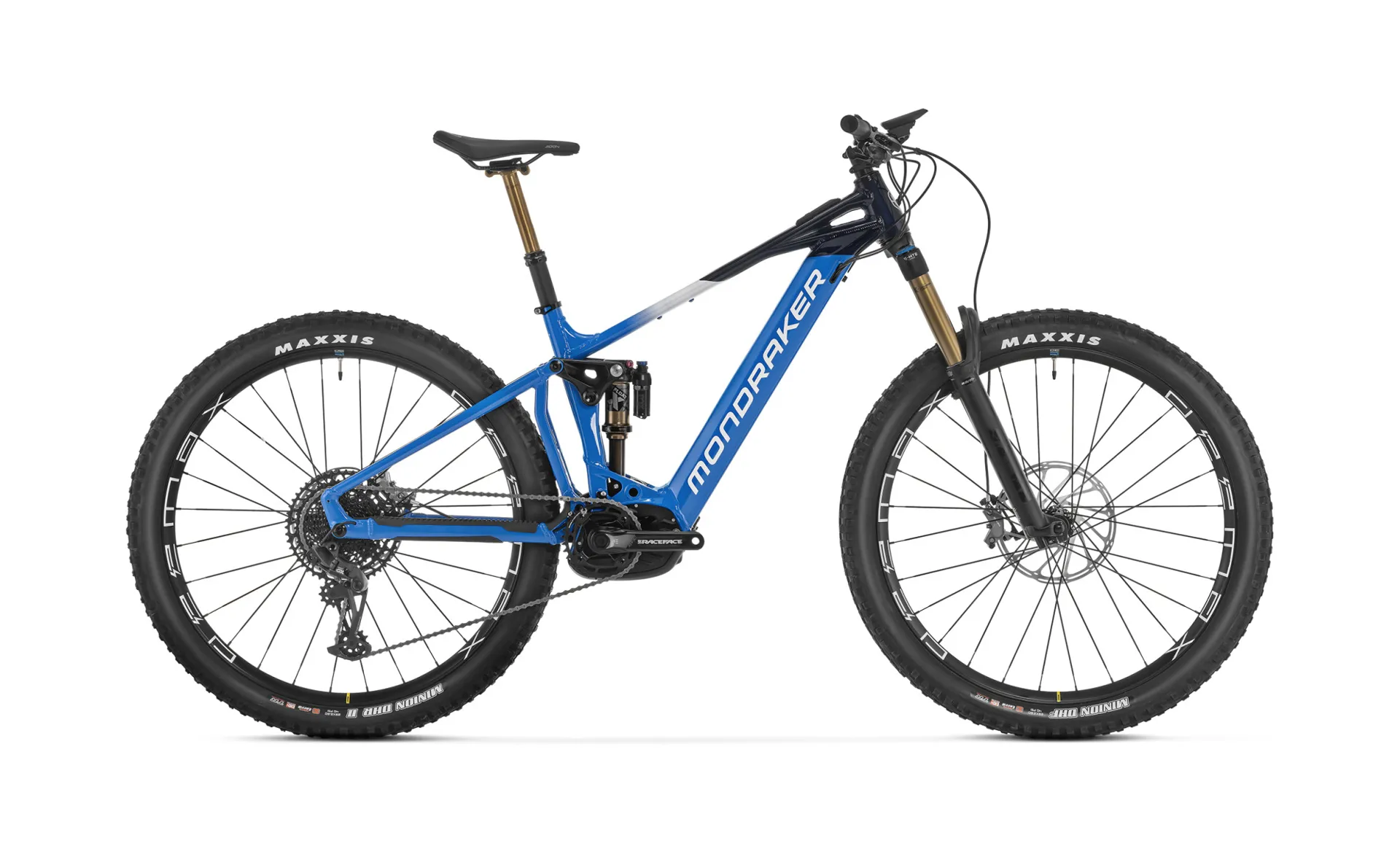

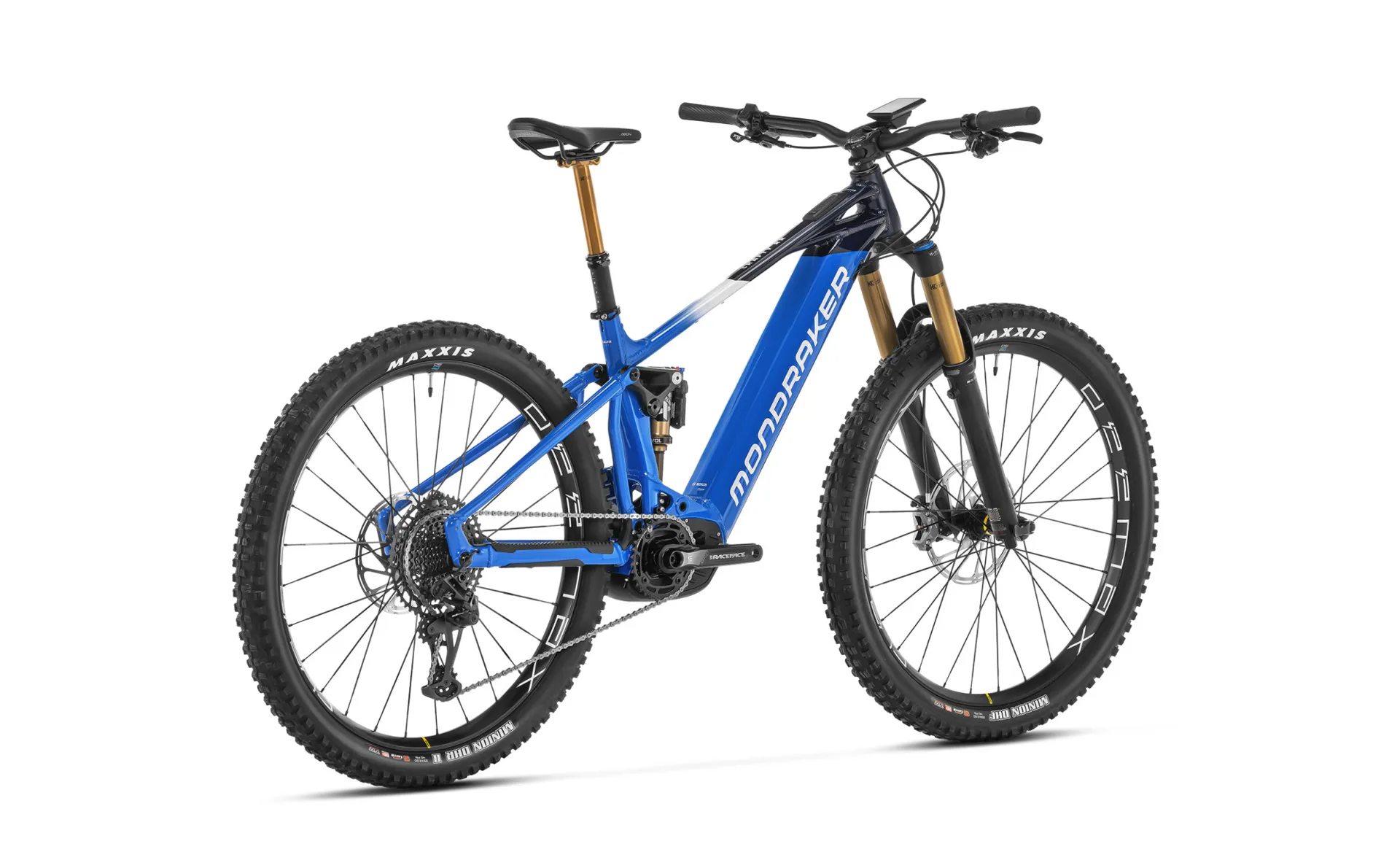

Mondraker CRAFTY RR Carrera M Blue

£4,860.00 £6,499.00 25% off
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

Our policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately we can’t offer you a refund or exchange.

To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.

Several types of goods are exempt from being returned or are at our decresion. Perishable goods such as Tyres, Tubes, Handlebar Grips, Saddles, Oils, Sprays etc cannot be returned. We also do not accept products that are hazardous - flammable liquids or gases.

Additional non-returnable items:
Gift cards
Downloadable software products
Some health and personal care items

To complete your return, we require a receipt or proof of purchase.

Please do not send your purchase back to the manufacturer.

There are certain situations where only partial refunds are granted: (if applicable)
Any item not in its original condition, is damaged or missing parts for reasons not due to our error.
Any item that is returned more than 30 days after delivery
Refunds (if applicable)

Once your return is received and inspected, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.

If you are approved, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within a certain amount of days.

Late or missing refunds (if applicable)

If you haven’t received a refund yet, first check your bank account again. Then contact your credit card company, it may take some time before your refund is officially posted. Next contact your bank. There is often some processing time before a refund is posted.

If you’ve done all of this and you still have not received your refund yet, please contact us at: mitchellcycles@yahoo.co.uk

Sale items (if applicable)

Only regular priced items may be refunded, unfortunately sale items cannot be refunded.

Exchanges (if applicable)

We only replace items if they are defective or damaged. If you need to exchange it for the same item, send us an email at: mitchellcycles@yahoo.co.uk and send your item to: Mitchell Cycles, 27 Shrivenham Road, Swindon, SN1 2QA, United Kingdom.

Gifts

If the item was marked as a gift when purchased and shipped directly to you, you’ll receive a gift credit for the value of your return. Once the returned item is received, a gift certificate will be mailed to you.

If the item wasn’t marked as a gift when purchased, or the gift giver had the order shipped to themselves to give to you later, we will send a refund to the gift giver and he will find out about your return.

Shipping

To return your product, you should mail your product to: Mitchell Cycles, 27 Shrivenham Road, Swindon, SN1 2QA, United Kingdom.

You will be responsible for paying for your own shipping costs for returning your item. Shipping costs are non-refundable. If you receive a refund, the cost of return shipping will be deducted from your refund.

Depending on where you live, the time it may take for your exchanged product to reach you, may vary.

Mondraker CRAFTY RR Carrera M Blue

Brand:Mondraker

Code:010.24402

Technical Information

Components

Technical specs

  • frame

    Frame

    Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.

    sizes

    Sizes

    S: 380mm / M: 420mm / L: 450mm / XL: 490mm

  • rear shock

    Rear shock

    Fox Float-X LV Factory Kashima, 205x65mm. Settings: compression 2 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings

    shock settings

    Shock settings

    medium compression, medium rebound, air volume spacer 0.2

  • fork

    Fork

    Fox 38 29 Float GRIP2 Factory Kashima, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high and low-speed compression, high and low-speed rebound, air preload

    headset

    Headset

    Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

  • stem

    Stem

    Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

    handlebar

    Handlebar

    Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

  • grips

    Grips

    Onoff Desert, 1lock-on, 135mm

    seatpost

    Seatpost

    Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M size: 418.3x150mm, L size: 475.1x175mm, XL size size: 475.1x200mm

  • saddle

    Saddle

    FIZIK Terra Aidon X5 145mm

    front brake

    Front brake

    Sram Code Bronze, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

  • rear brake

    Rear brake

    Sram Code Bronze, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

    brake lever

    Brake lever

    Sram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust

  • rims

    Rims

    Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes

    spokes

    Spokes

    Mavic J-bend double butted, contactless lacing

  • front hub

    Front hub

    Mavic, Boost 15x110mm, IS 6 bolts

    rear hub

    Rear hub

    Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub

  • front tire

    Front tire

    Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

    rear tire

    Rear tire

    Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

  • crankset

    Crankset

    Race Face Aeffect ebike, 165mm

    rings

    Rings

    Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD

  • chain

    Chain

    Sram NX Eagle, 12s, Powerlock

    rear derrailleur

    Rear derrailleur

    Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

  • shift levers

    Shift levers

    Sram Trigger GX Eagle, 12s, X-Actuation 1:1, single click

    casette

    Casette

    Sram PG-1230, 11-50T, 12s

  • derailleur hanger

    Derailleur hanger

    Mondraker M068

    weight

    Weight

    25,9 kg

  • display

    Display

    Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller

    motor

    Motor

    Bosch Performance Line CX Cruise (25 km/h) GEN4 SMART SYSTEM

  • battery

    Battery

    Bosch Powertube 750Wh

Sizing Information

Geometry

mm / inch
Frame size
SMLXL
ASeattube length380mm420mm450mm490mm
BToptube length605mm625mm650mm670mm
CBottom bracket drop-25mm-25mm-25mm-25mm
DBottom bracket height350mm350mm350mm350mm
EChainstay length455mm455mm455mm455mm
FSeat tube angle73.5°73.5°73.5°73.5°
GEffective seattube angle76°76°76°76°
HHeadtube angle65.5°65.5°65.5°65.5°
IFork Offset44mm44mm44mm44mm
JWheelbase1225mm1245mm1265mm1285mm
KHeadtube length110mm110mm130mm130mm
LReach450mm470mm490mm510mm
MStack622mm622mm640mm640mm
