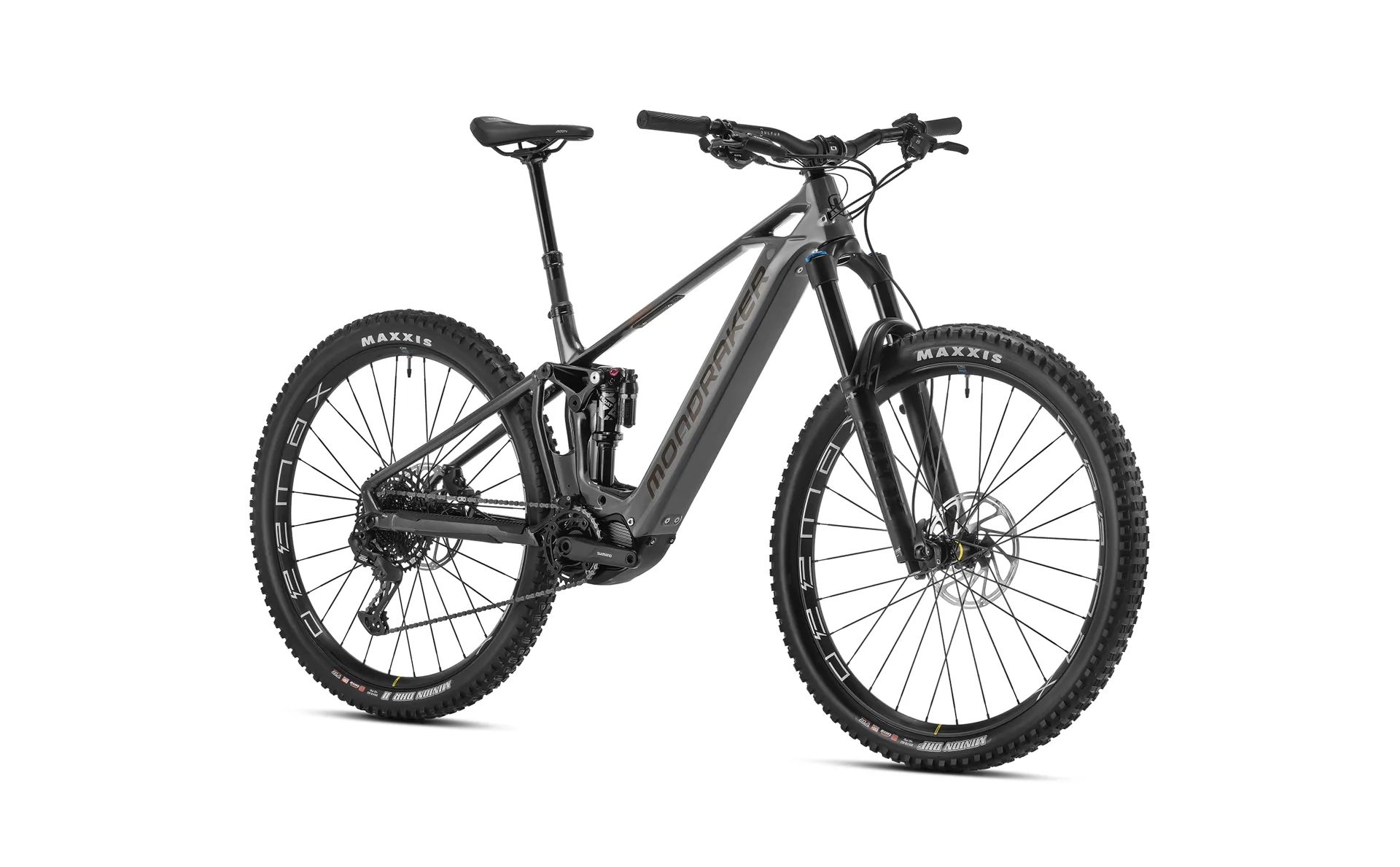

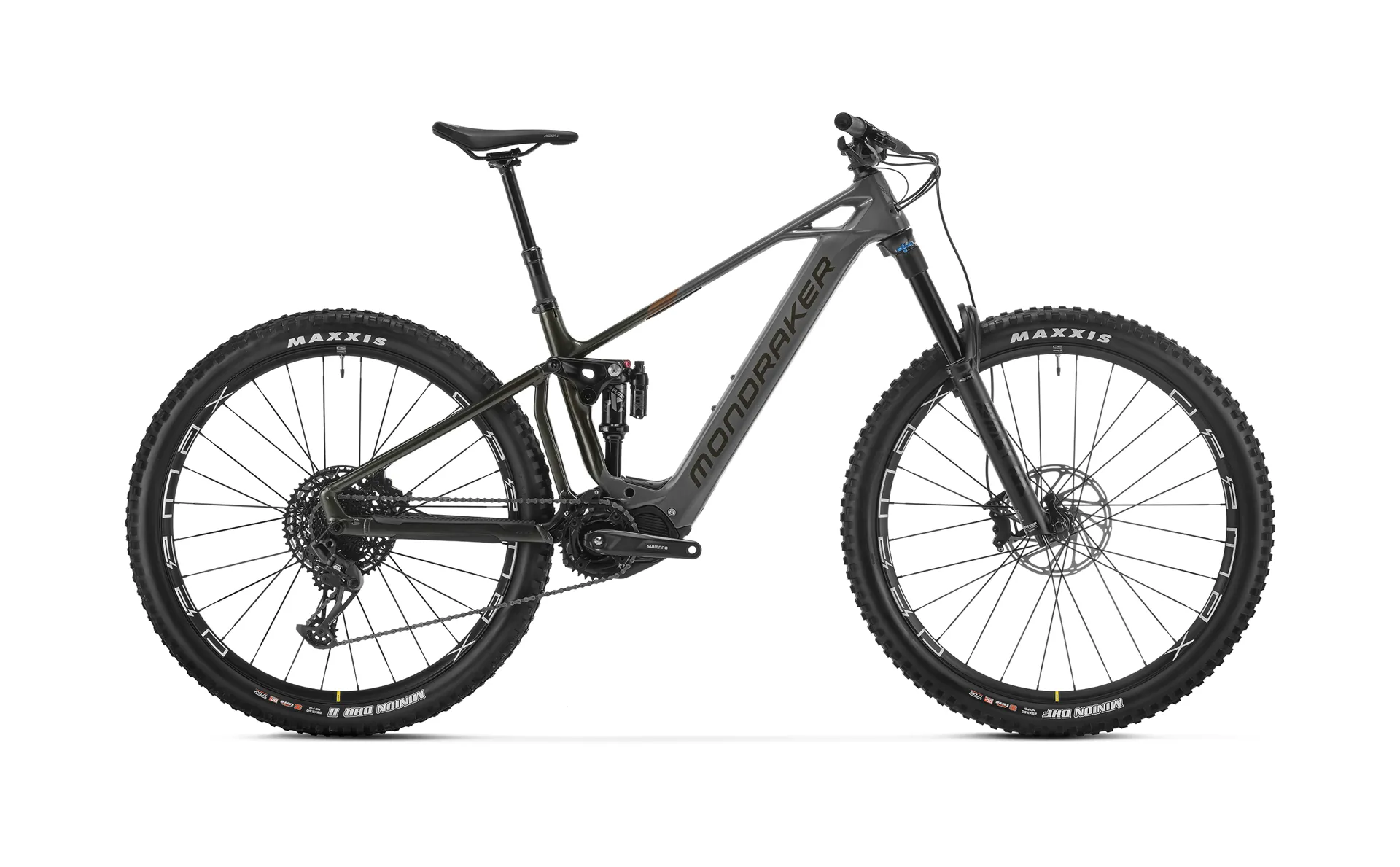

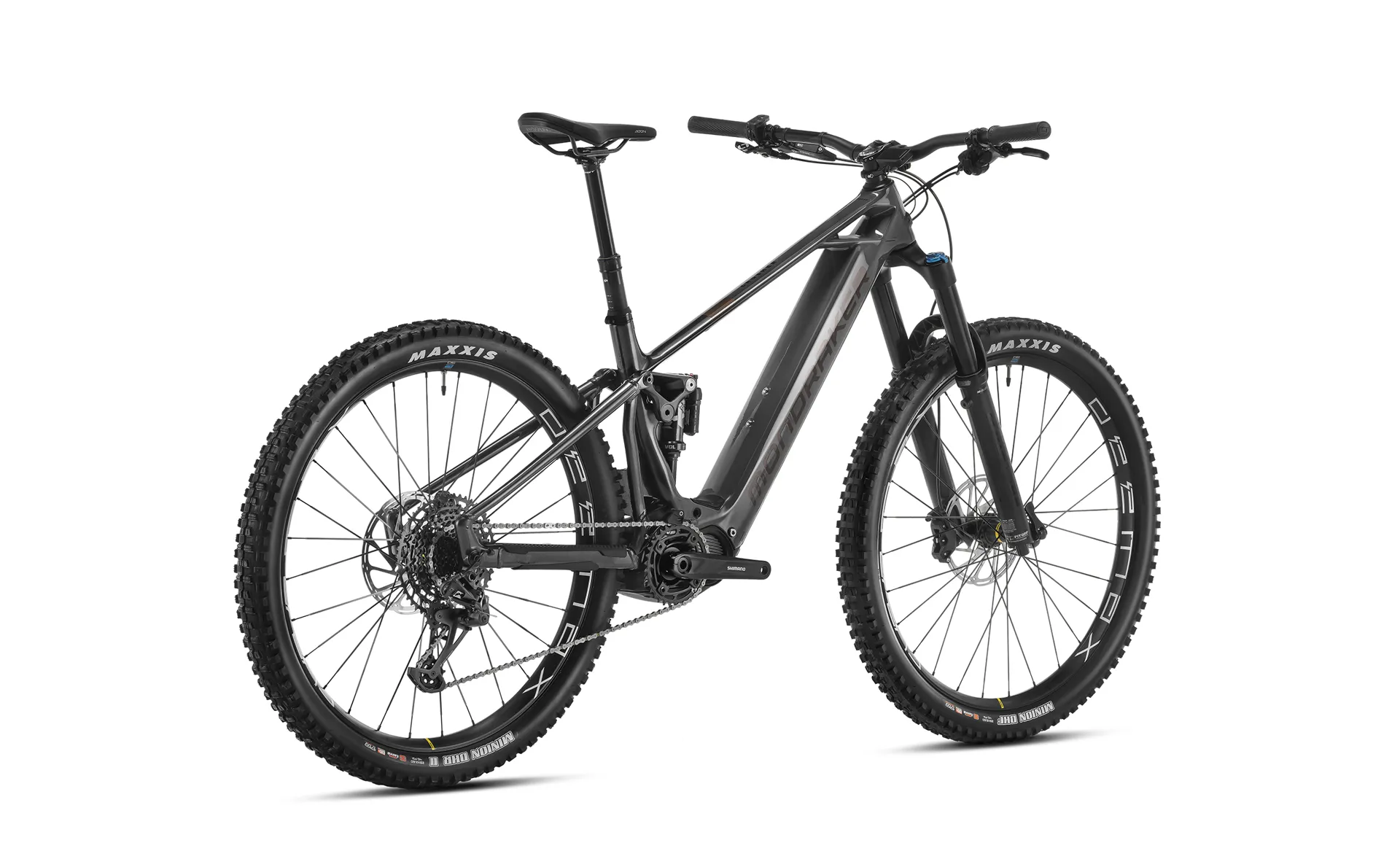

Mondraker CRUSHER Nimbus Grey Medium

Brand:Mondraker

Code:010.24362

  • Range:CRUSHER
  • Discipline:ENDURO
Technical Information
  • Frame

    Crusher Stealth Air Carbon front triangle, Stealth Alloy rear triangle, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, integrated internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.

    Sizes

    S: 380mm / M: 420mm / L: 450mm / XL: 490mm

    Rear shock

    Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings

    Shock settings

    medium compression, medium rebound, air volume spacer 0.2

    Fork

    Fox 38 29 Float FIT GRIP EVOL Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload

    Headset

    AcrosAZF-601 R1 Block Lock 120°, ZS44/28.6 top, ZS56/40 bottom

    Stem

    Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

    Handlebar

    Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

    Grips

    Onoff Desert, 1lock-on, 135mm

    Seatpost

    Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm

    Saddle

    FIZIK Terra Aidon X5 145mm

    Front brake

    Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

    Rear brake

    Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

    Brake lever

    Sram DB8, tool reach adjust, lever pivot bushings

    Rims

    Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes

    Spokes

    Mavic J-bend double butted, contactless lacing

  • Front hub

    Mavic, Boost 15x110mm, IS 6 bolts

    Rear hub

    Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, HG freehub

    Front tire

    Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

    Rear tire

    Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

    Crankset

    Shimano Steps FC-EM600 ebike, 165mm

    Rings

    Sram X-Sync 2 Eagle 34T, alloy, narrow-wide, 104 BCD

    Chain

    Sram SX Eagle, 12s, Powerlock

    Rear derrailleur

    Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

    Shift levers

    Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click

    Casette

    Sram PG-1210, 11-50T, 12s

    Derailleur hanger

    Mondraker M068

    Weight

    24,6 kg

    Display

    Shimano EN600

    Motor

    Shimano STEPS EP801

    Battery

    Simplo internal 720Wh G3
