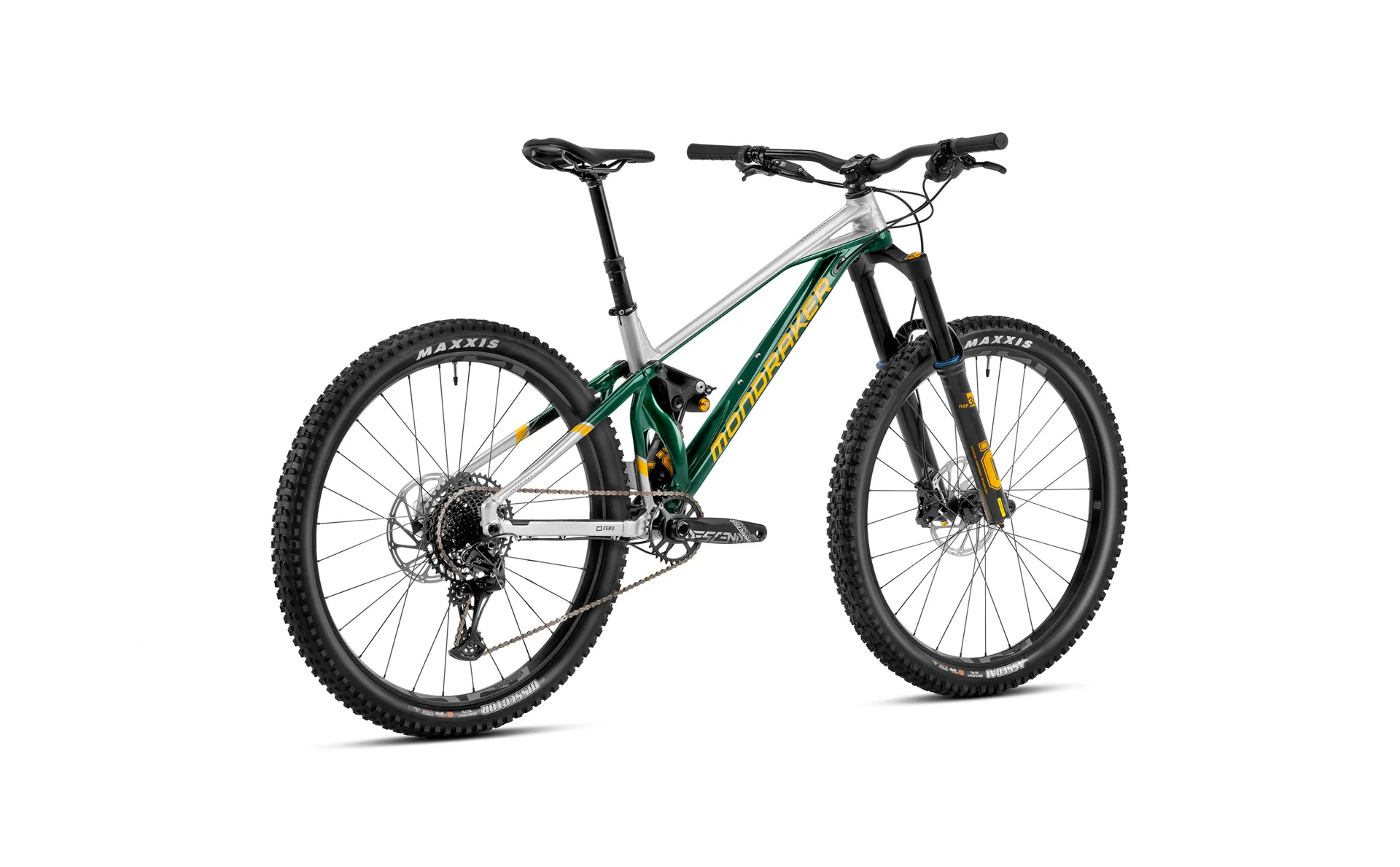

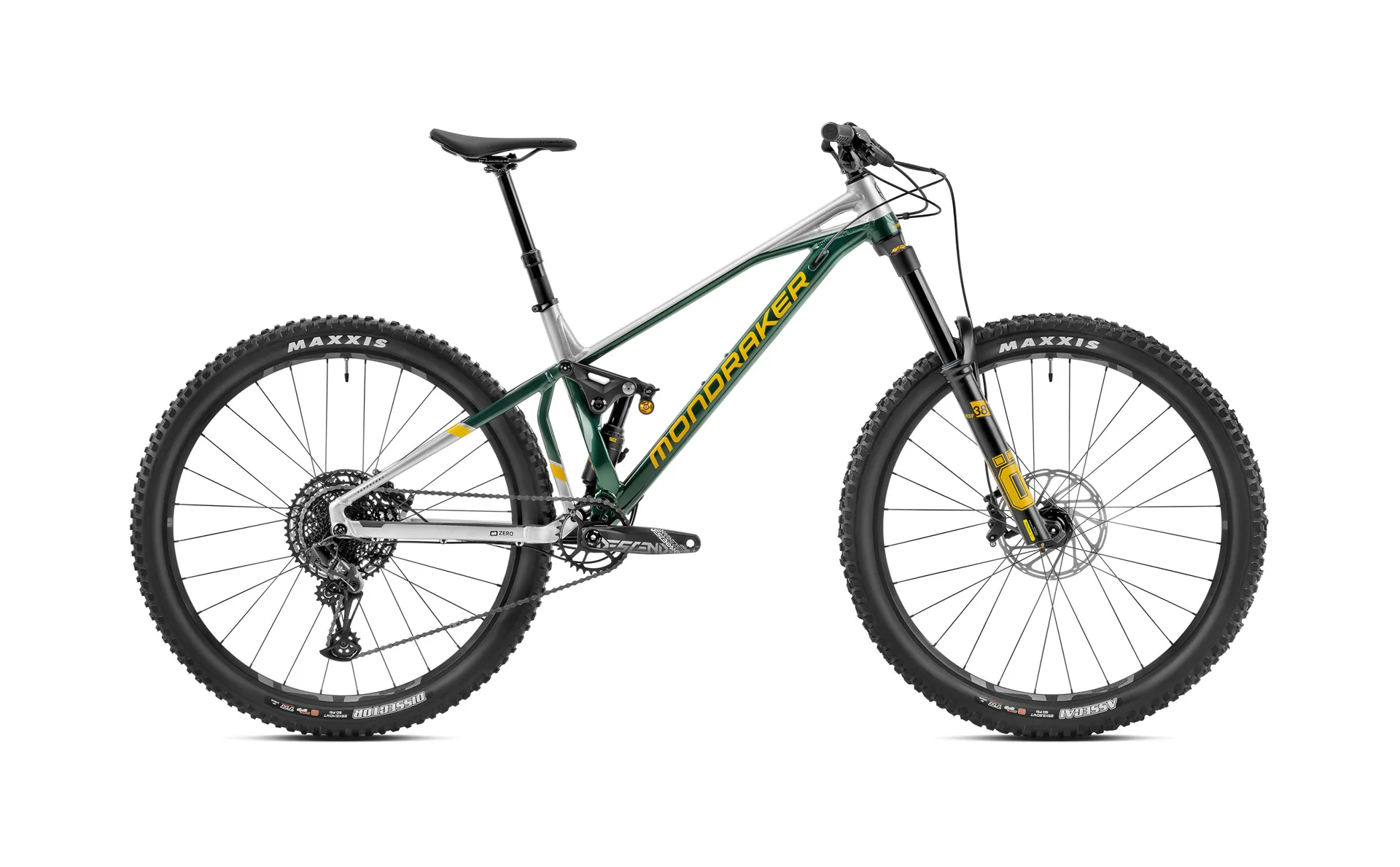

If you’re looking for a super enduro from Mondraker with everything you’ll ever need to gas it when the trail points downwards but a carbon frame just isn’t on your list of priorities, the SUPERFOXY R is the bike for you. It’s got all the cherry-picked components, starting with the Öhlins suspension front and back, ONOFF’s range-topping components, e*thirteen’s LG1 Plus Enduro wheels... and best of all, its spectacular frame made of our top of the range aluminium: STEATH ALLOY. Spectacular design, beautiful colours, and everything designed to be taken to the limit with nothing to hold you back.
If you’re looking for a super enduro from Mondraker with everything you’ll ever need to gas it when the trail points downwards but a carbon frame just isn’t on your list of priorities, the SUPERFOXY R is the bike for you. It’s got all the cherry-picked components, starting with the Öhlins suspension front and back, ONOFF’s range-topping components, e*thirteen’s LG1 Plus Enduro wheels... and best of all, its spectacular frame made of our top of the range aluminium: STEATH ALLOY. Spectacular design, beautiful colours, and everything designed to be taken to the limit with nothing to hold you back.
Mondraker

SUPERFOXY R B/RACING GREEN LARGE

£4,899.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

Our policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately we can’t offer you a refund or exchange.

To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.

Several types of goods are exempt from being returned or are at our decresion. Perishable goods such as Tyres, Tubes, Handlebar Grips, Saddles, Oils, Sprays etc cannot be returned. We also do not accept products that are hazardous - flammable liquids or gases.

Additional non-returnable items:
Gift cards
Downloadable software products
Some health and personal care items

To complete your return, we require a receipt or proof of purchase.

Please do not send your purchase back to the manufacturer.

There are certain situations where only partial refunds are granted: (if applicable)
Any item not in its original condition, is damaged or missing parts for reasons not due to our error.
Any item that is returned more than 30 days after delivery
Refunds (if applicable)

Once your return is received and inspected, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.

If you are approved, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within a certain amount of days.

Late or missing refunds (if applicable)

If you haven’t received a refund yet, first check your bank account again. Then contact your credit card company, it may take some time before your refund is officially posted. Next contact your bank. There is often some processing time before a refund is posted.

If you’ve done all of this and you still have not received your refund yet, please contact us at: mitchellcycles@yahoo.co.uk

Sale items (if applicable)

Only regular priced items may be refunded, unfortunately sale items cannot be refunded.

Exchanges (if applicable)

We only replace items if they are defective or damaged. If you need to exchange it for the same item, send us an email at: mitchellcycles@yahoo.co.uk and send your item to: Mitchell Cycles, 27 Shrivenham Road, Swindon, SN1 2QA, United Kingdom.

Gifts

If the item was marked as a gift when purchased and shipped directly to you, you’ll receive a gift credit for the value of your return. Once the returned item is received, a gift certificate will be mailed to you.

If the item wasn’t marked as a gift when purchased, or the gift giver had the order shipped to themselves to give to you later, we will send a refund to the gift giver and he will find out about your return.

Shipping

To return your product, you should mail your product to: Mitchell Cycles, 27 Shrivenham Road, Swindon, SN1 2QA, United Kingdom.

You will be responsible for paying for your own shipping costs for returning your item. Shipping costs are non-refundable. If you receive a refund, the cost of return shipping will be deducted from your refund.

Depending on where you live, the time it may take for your exchanged product to reach you, may vary.

SUPERFOXY R B/RACING GREEN LARGE

Brand:Mondraker

Code:010.23135

Technical Information
  • frame

    FrameSuperFoxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 160mm travel, Forward Geometry, one piece Monoblock upper link, SuperBoost 12x157mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, Max. capacity sealed bearings, ISCG 05

    sizes

    SizesS: 380mm / M: 420mm / L: 470mm / XL: 510mm

  • rear shock

    Rear shockÖhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings

    shock settings

    Shock settingsC20 compression, R35 rebound. Volume reducers 16.000 (2xF+1E)

  • fork

    ForkÖhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber

    headset

    HeadsetOnoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

  • stem

    StemOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

    handlebar

    HandlebarOnoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

  • grips

    GripsOnoff Twin, 1lock-on, 135mm

    seatpost

    SeatpostOnoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm

  • saddle

    SaddleSDG BEL-AIR 3.0, LPU foam, steel rails

    front brake

    Front brakeSram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

  • rear brake

    Rear brakeSram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

    brake lever

    Brake leverSram DB8, tool reach adjust

  • rims

    Rimse*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes

    spokes

    Spokese*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers

  • front hub

    Front hube*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

    rear hub

    Rear hube*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, Shimano freehub

  • front tire

    Front tireMaxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

    rear tire

    Rear tireMaxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

  • crankset

    CranksetTruvativ Descendant 7K Eagle, SuperBoost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm

    rings

    Rings32T, CNC-machined alloy, X-SYNC 2

  • bottom bracket

    Bottom bracketSram DUB BSA, sealed bearings, 73mm

    chain

    ChainSram SX Eagle, 12s, Powerlock

  • rear derrailleur

    Rear derrailleurSram NX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1

    shift levers

    Shift leversSram Trigger SX Eagle, 12s, X-Actuation 1:1

  • casette

    CasetteSram XG-1230, 11-50T, 12

  • derailleur hanger

    Derailleur hangerMondraker M068

  • weight

    Weight17,1 kg

Sizing Information
FRAME SIZE
SMLXL
ASeattube length380 mm420 mm470mm510 mm
BToptube length605 mm625 mm650 mm670 mm
CBottom bracket drop-20 mm-20 mm-20 mm-20 mm
DBottom bracket height350 mm350 mm350 mm350 mm
EChainstay length445 mm445 mm445 mm445 mm
FSeat tube angle71°71°71°71°
GEffective seattube angle76°76°76°76°
HHeadtube angle65°65°65°65°
IFork Offset44 mm44 mm44 mm44 mm
JWheelbase1224 mm1245 mm1273 mm1293 mm
KHeadtube length100 mm110mm130 mm130 mm
LReach450 mm470 mm490 mm510 mm
MStack621 mm621 mm639 mm639 mm
