Mondraker

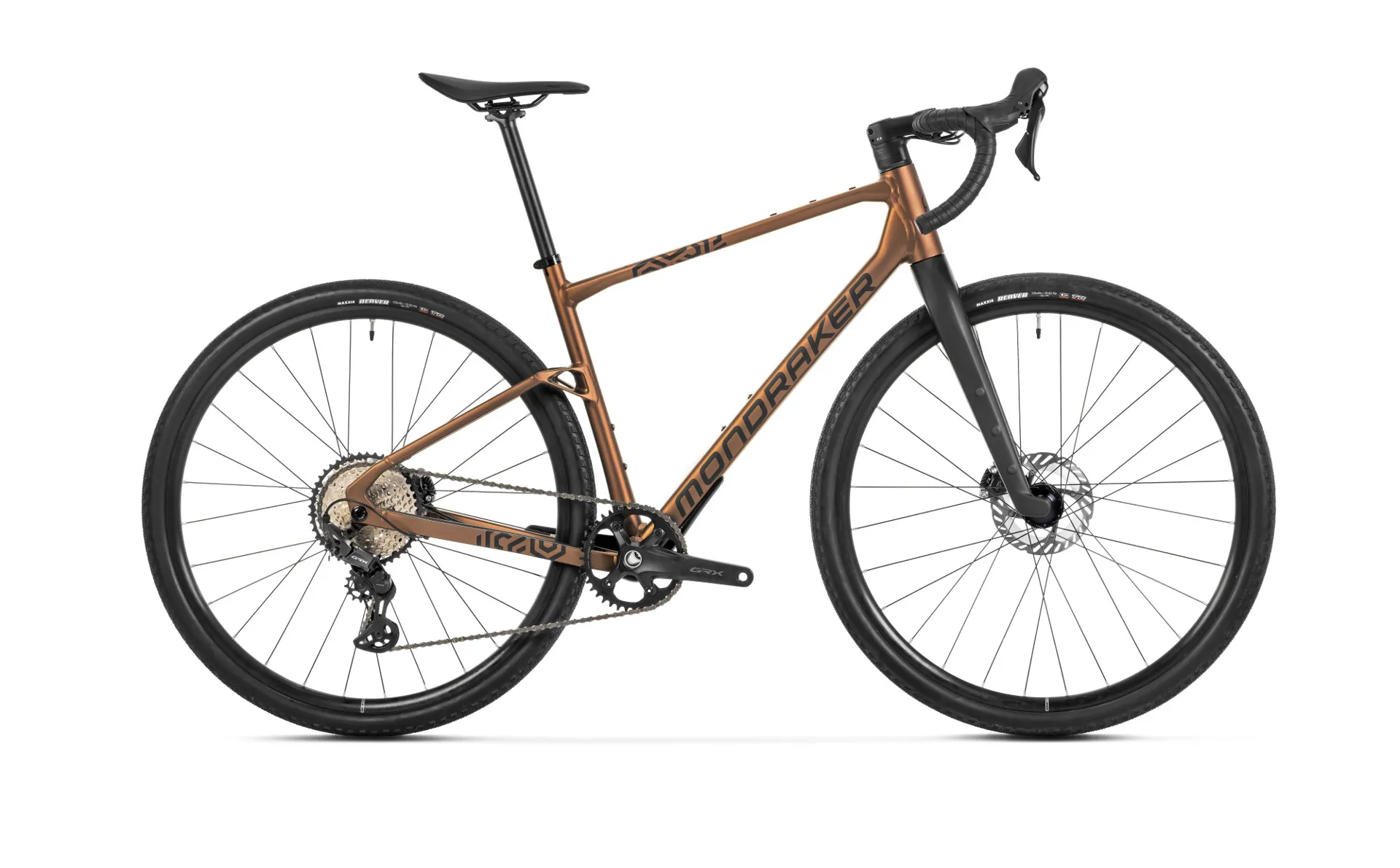

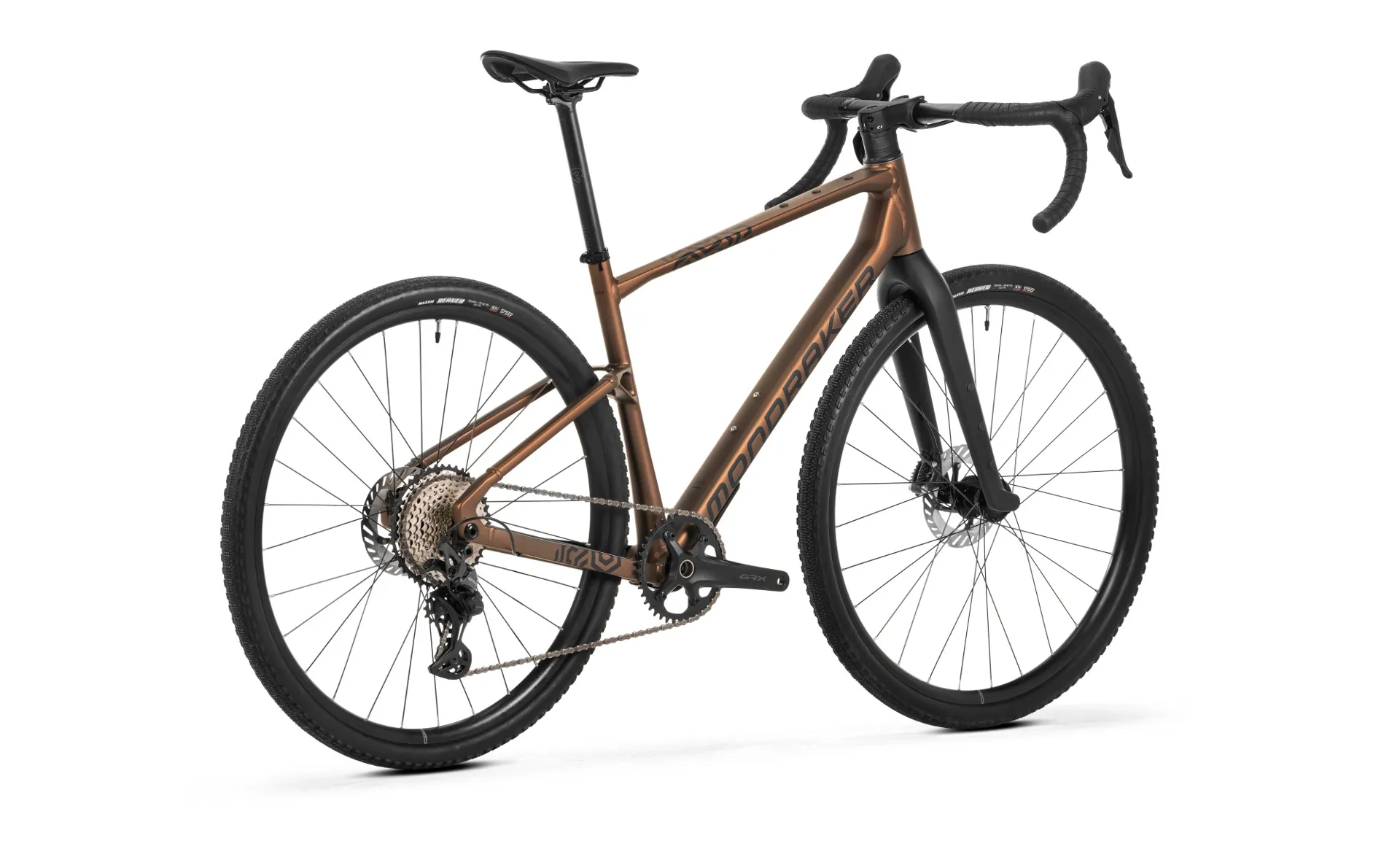

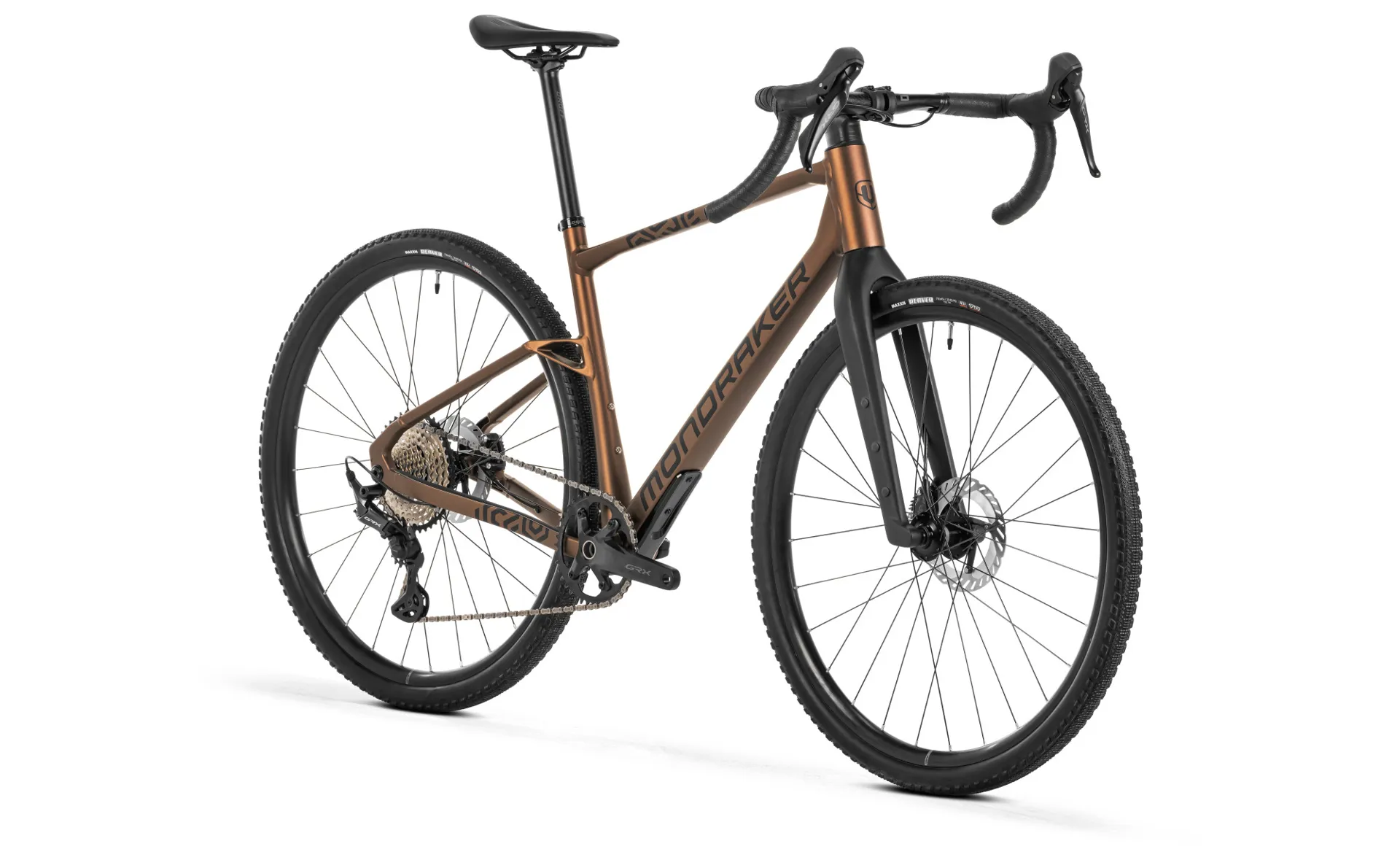

Mondraker ARID S Bronze Size ML

£2,299.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

Our policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately we can’t offer you a refund or exchange.

To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.

Several types of goods are exempt from being returned or are at our decresion. Perishable goods such as Tyres, Tubes, Handlebar Grips, Saddles, Oils, Sprays etc cannot be returned. We also do not accept products that are hazardous - flammable liquids or gases.

Additional non-returnable items:
Gift cards
Downloadable software products
Some health and personal care items

To complete your return, we require a receipt or proof of purchase.

Please do not send your purchase back to the manufacturer.

There are certain situations where only partial refunds are granted: (if applicable)
Any item not in its original condition, is damaged or missing parts for reasons not due to our error.
Any item that is returned more than 30 days after delivery
Refunds (if applicable)

Once your return is received and inspected, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.

If you are approved, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within a certain amount of days.

Late or missing refunds (if applicable)

If you haven’t received a refund yet, first check your bank account again. Then contact your credit card company, it may take some time before your refund is officially posted. Next contact your bank. There is often some processing time before a refund is posted.

If you’ve done all of this and you still have not received your refund yet, please contact us at: mitchellcycles@yahoo.co.uk

Sale items (if applicable)

Only regular priced items may be refunded, unfortunately sale items cannot be refunded.

Exchanges (if applicable)

We only replace items if they are defective or damaged. If you need to exchange it for the same item, send us an email at: mitchellcycles@yahoo.co.uk and send your item to: Mitchell Cycles, 27 Shrivenham Road, Swindon, SN1 2QA, United Kingdom.

Gifts

If the item was marked as a gift when purchased and shipped directly to you, you’ll receive a gift credit for the value of your return. Once the returned item is received, a gift certificate will be mailed to you.

If the item wasn’t marked as a gift when purchased, or the gift giver had the order shipped to themselves to give to you later, we will send a refund to the gift giver and he will find out about your return.

Shipping

To return your product, you should mail your product to: Mitchell Cycles, 27 Shrivenham Road, Swindon, SN1 2QA, United Kingdom.

You will be responsible for paying for your own shipping costs for returning your item. Shipping costs are non-refundable. If you receive a refund, the cost of return shipping will be deducted from your refund.

Depending on where you live, the time it may take for your exchanged product to reach you, may vary.

Mondraker ARID S Bronze Size ML

Season:2026

Brand:Mondraker

Code:010.26123

700 Carbon Alloy

  • Rings · Shimano 40T
  • Rear derrailleur · Shimano GRX, 12s
  • Casette · Shimano SLX M7100,10-45


Every ride is an opportunity to try something new.

Roam solo. Or chase the group ahead on the horizon. Mix it up with your friends or take on your first gravel race. Or simply leave the world behind for the weekend. There’s no wrong way to go, so long as you go!

Riding gravel brings you endless opportunities to experience the world, at the pace and the place that you choose. The new Mondraker Arid is your gateway to the Mondraker gravel scene and the world beyond your doorstep

Technical Information

Components

Technical specs

  • frame

    Frame

    Arid alloy, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, 1X drivetrain design, Flatmount brake compatible.

    sizes

    Sizes

    S: 410mm / M: 450mm / ML: 480mm / L: 510mm / XL: 540mm

  • fork

    Fork

    Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork

    headset

    Headset

    Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.

  • stem

    Stem

    Onoff S3 6061 T6 Alloy, 31.8mm barbore, rise: -7º, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm

    handlebar

    Handlebar

    OnOff S3 GR 16º bar flare. Width sizes S size: 440mm M size: 440mm ML size: 460mm L size: 460mm XL size: 460mm

  • grips

    Grips

    OnOff HEX Bartape

    seatpost

    Seatpost

    Onoff S3 0-R, diameter 27.2mm, length 400mm

  • saddle

    Saddle

    FIZIK Terra Argo X5 140mm

    front brake

    Front brake

    Shimano GRX RX-610, RX-400 caliper, CL-800 ice tech 160mm centerlock rotor, resin pad

  • rear brake

    Rear brake

    Shimano GRX RX-610, RX-400 caliper, CL-800 ice tech 160mm centerlock rotor, resin pad

    brake lever

    Brake lever

    Shimano GRX RX-610, contact point adjustment, tooled reach adjust, aluminium lever.

  • rims

    Rims

    Mavic Allroad Disc, UST, 25mm internal width, hookless, infinity hubs, 24 spokes front, 28 spokers rear

    spokes

    Spokes

    Mavic Steel double butted flat spokes

  • front hub

    Front hub

    Mavic, 12x100mm, IS 6 bolts

    rear hub

    Rear hub

    Mavic infinity hub, 12x142mm, XD ID360 Ratchet system, IS 6 bolts, MS Freehub

  • front tire

    Front tire

    Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead

    rear tire

    Rear tire

    Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead

  • crankset

    Crankset

    Shimano GRX RX-610, S size: 170mm M size: 170mm ML size: 172,5mm L size: 172,5mm XL size: 175mm, CL 49,7

    rings

    Rings

    Shimano 40T, direct mount, steel

  • bottom bracket

    Bottom bracket

    Token T47 BSA sealed bearings, 85,5mm

    chain

    Chain

    Shimano SLX M7100, Quick link

  • rear derrailleur

    Rear derrailleur

    Shimano GRX RX-822-GS, 12s

    shift levers

    Shift levers

    Shimano GRX RX-610 dual control, alloy lever

  • casette

    Casette

    Shimano SLX M7100, hiperglide+,10-45, 12s

    derailleur hanger

    Derailleur hanger

    Sram UDH

  • weight

    Weight

    10,9 kg

Sizing Information

Geometry

mm
Frame size
SMM/LLXL
ASeattube length410 mm450 mm480 mm510 mm540 mm
BToptube length520 mm550 mm580 mm600 mm630 mm
CBottom bracket drop-75-75-75-75-75
DBottom bracket height269 mm269 mm269 mm269 mm269 mm
EChainstay length425 mm425 mm425 mm425 mm425 mm
FSeat tube angle73°73°73°73°73°
GEffective seattube angle74°74°74°74°74°
HHeadtube angle70°70°70°70°70°
IFork Offset45 mm45 mm45 mm45 mm45 mm
JWheelbase1003 mm1035 mm1067 mm1089 mm1121 mm
KHeadtube length100 mm125 mm145 mm175 mm200 mm
LReach363 mm386 mm411 mm423 mm446 mm
MStack548 mm572 mm591 mm619 mm642 mm
NStem Length60 mm70 mm70 mm80 mm90 mm
OFork Height420 mm420 mm420 mm420 mm420 mm
