Mondraker

PRIME Crystal White M

£3,499.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

Our policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately we can’t offer you a refund or exchange.

To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.

Several types of goods are exempt from being returned or are at our decresion. Perishable goods such as Tyres, Tubes, Handlebar Grips, Saddles, Oils, Sprays etc cannot be returned. We also do not accept products that are hazardous - flammable liquids or gases.

Additional non-returnable items:
Gift cards
Downloadable software products
Some health and personal care items

To complete your return, we require a receipt or proof of purchase.

Please do not send your purchase back to the manufacturer.

There are certain situations where only partial refunds are granted: (if applicable)
Any item not in its original condition, is damaged or missing parts for reasons not due to our error.
Any item that is returned more than 30 days after delivery
Refunds (if applicable)

Once your return is received and inspected, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.

If you are approved, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within a certain amount of days.

Late or missing refunds (if applicable)

If you haven’t received a refund yet, first check your bank account again. Then contact your credit card company, it may take some time before your refund is officially posted. Next contact your bank. There is often some processing time before a refund is posted.

If you’ve done all of this and you still have not received your refund yet, please contact us at: mitchellcycles@yahoo.co.uk

Sale items (if applicable)

Only regular priced items may be refunded, unfortunately sale items cannot be refunded.

Exchanges (if applicable)

We only replace items if they are defective or damaged. If you need to exchange it for the same item, send us an email at: mitchellcycles@yahoo.co.uk and send your item to: Mitchell Cycles, 27 Shrivenham Road, Swindon, SN1 2QA, United Kingdom.

Gifts

If the item was marked as a gift when purchased and shipped directly to you, you’ll receive a gift credit for the value of your return. Once the returned item is received, a gift certificate will be mailed to you.

If the item wasn’t marked as a gift when purchased, or the gift giver had the order shipped to themselves to give to you later, we will send a refund to the gift giver and he will find out about your return.

Shipping

To return your product, you should mail your product to: Mitchell Cycles, 27 Shrivenham Road, Swindon, SN1 2QA, United Kingdom.

You will be responsible for paying for your own shipping costs for returning your item. Shipping costs are non-refundable. If you receive a refund, the cost of return shipping will be deducted from your refund.

Depending on where you live, the time it may take for your exchanged product to reach you, may vary.

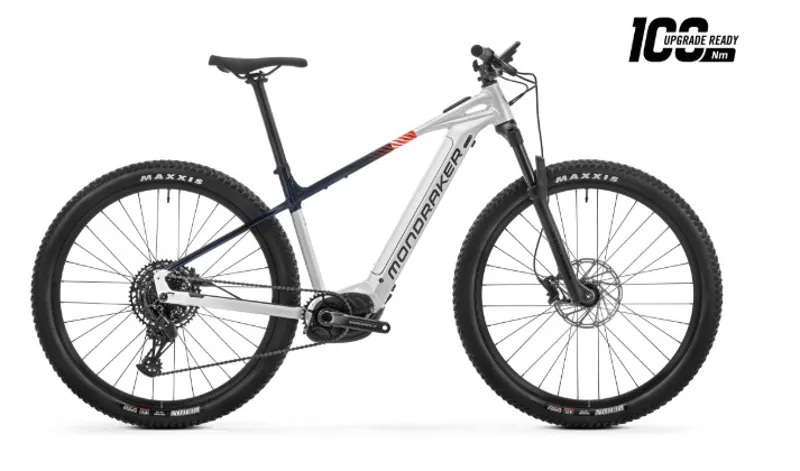

PRIME Crystal White M

Season:2025

Brand:Mondraker

Code:010.25277

PRIME: EVERYTHING’S EASIER

It’s easier because Prime keeps things simple. The reliability of an aluminium frame, perfectly balanced with the latest version of Bosch’s CX motor and components to instil confidence on your rides.Prime might be your first ebike but it certainly won’t be your last.Prime and Prime R come with 625Wh and 750Wh batteries respectively, 120mm Rockshox forks and the latest generation of ONOFF components including the Pija dropper post on the Prime R.You only have to choose your colour and your build as the fun is already guaranteed.

Technical Information
  • Frame

    Prime Xtralite 6061 Full Butted Alloy, Forward Geometry, intenal removable battery, tapered head tube, Boost 12x148mm rear axle, integrated dropout speed sensor

    Sizes

    XS: 380mm / S: 390mm / M: 430mm / L: 470mm / XL: 510mm

    Fork

    RockShox Recon Silver RL 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 32mm steel stanchions, 42mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload

    Headset

    Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º

    Stem

    Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore

    Handlebar

    Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.

    Grips

    Onoff Beehive, 1lock-on, 135mm

    Seatpost

    Onoff S3 0-R, diameter 31.6mm, length 400mm

    Saddle

    MDK ebike black

    Front brake

    Sram Level T, 2 piece caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pad

    Rear brake

    Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad

    Brake lever

    Sram Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings

    Rims

    Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes

    Spokes

    Mavic J-bend double butted, contactless lacing

    Front hub

    Mavic, Boost 15x110mm, IS 6 bolts

  • Rear hub

    Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub

    Front tire

    Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead

    Rear tire

    Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead

    Crankset

    Race Face Aeffect-R ebike, 160mm

    Rings

    Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD

    Chain

    Sram SX Eagle, 12s, Powerlock

    Rear derrailleur

    Sram SX Eagle,12s

    Shift levers

    Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click

    Casette

    Sram PG-1210, 11-50T, 12s

    Derailleur hanger

    Sram UDH

    Weight

    22,7 kg

    Display

    Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller

    Motor

    New Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)

    Battery

    Bosch Powertube 625Wh

Sizing Information

Geometry

mm
Frame size
XSSMLXL
ASeattube length380mm390mm430mm470mm510mm
BToptube length600mm615mm645mm670mm700mm
CBottom bracket drop-60mm-60mm-60mm-60mm-60mm
DBottom bracket height318mm318mm318mm318mm318mm
EChainstay length455mm455mm455mm455mm455mm
FSeat tube angle73.5°73.5°73.5°73.5°73.5°
GEffective seattube angle73.5°73.5°73.5°73.5°73.5°
HHeadtube angle69°69°69°69°69°
IFork Offset51mm51mm51mm51mm51mm
JWheelbase1138mm1153mm1183mm1210mm1240mm
KHeadtube length110mm110m110mm130mm130mm
LReach410mm425mm455mm480mm505mm
MStack640mm640mm640mm658mm658mm
