Mondraker

Mondraker CRAFTY CARBON R Black ML

£4,899.00 £6,299.00 22% off
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

Our policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately we can’t offer you a refund or exchange.

To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.

Several types of goods are exempt from being returned or are at our decresion. Perishable goods such as Tyres, Tubes, Handlebar Grips, Saddles, Oils, Sprays etc cannot be returned. We also do not accept products that are hazardous - flammable liquids or gases.

Additional non-returnable items:
Gift cards
Downloadable software products
Some health and personal care items

To complete your return, we require a receipt or proof of purchase.

Please do not send your purchase back to the manufacturer.

There are certain situations where only partial refunds are granted: (if applicable)
Any item not in its original condition, is damaged or missing parts for reasons not due to our error.
Any item that is returned more than 30 days after delivery
Refunds (if applicable)

Once your return is received and inspected, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.

If you are approved, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within a certain amount of days.

Late or missing refunds (if applicable)

If you haven’t received a refund yet, first check your bank account again. Then contact your credit card company, it may take some time before your refund is officially posted. Next contact your bank. There is often some processing time before a refund is posted.

If you’ve done all of this and you still have not received your refund yet, please contact us at: mitchellcycles@yahoo.co.uk

Sale items (if applicable)

Only regular priced items may be refunded, unfortunately sale items cannot be refunded.

Exchanges (if applicable)

We only replace items if they are defective or damaged. If you need to exchange it for the same item, send us an email at: mitchellcycles@yahoo.co.uk and send your item to: Mitchell Cycles, 27 Shrivenham Road, Swindon, SN1 2QA, United Kingdom.

Gifts

If the item was marked as a gift when purchased and shipped directly to you, you’ll receive a gift credit for the value of your return. Once the returned item is received, a gift certificate will be mailed to you.

If the item wasn’t marked as a gift when purchased, or the gift giver had the order shipped to themselves to give to you later, we will send a refund to the gift giver and he will find out about your return.

Shipping

To return your product, you should mail your product to: Mitchell Cycles, 27 Shrivenham Road, Swindon, SN1 2QA, United Kingdom.

You will be responsible for paying for your own shipping costs for returning your item. Shipping costs are non-refundable. If you receive a refund, the cost of return shipping will be deducted from your refund.

Depending on where you live, the time it may take for your exchanged product to reach you, may vary.

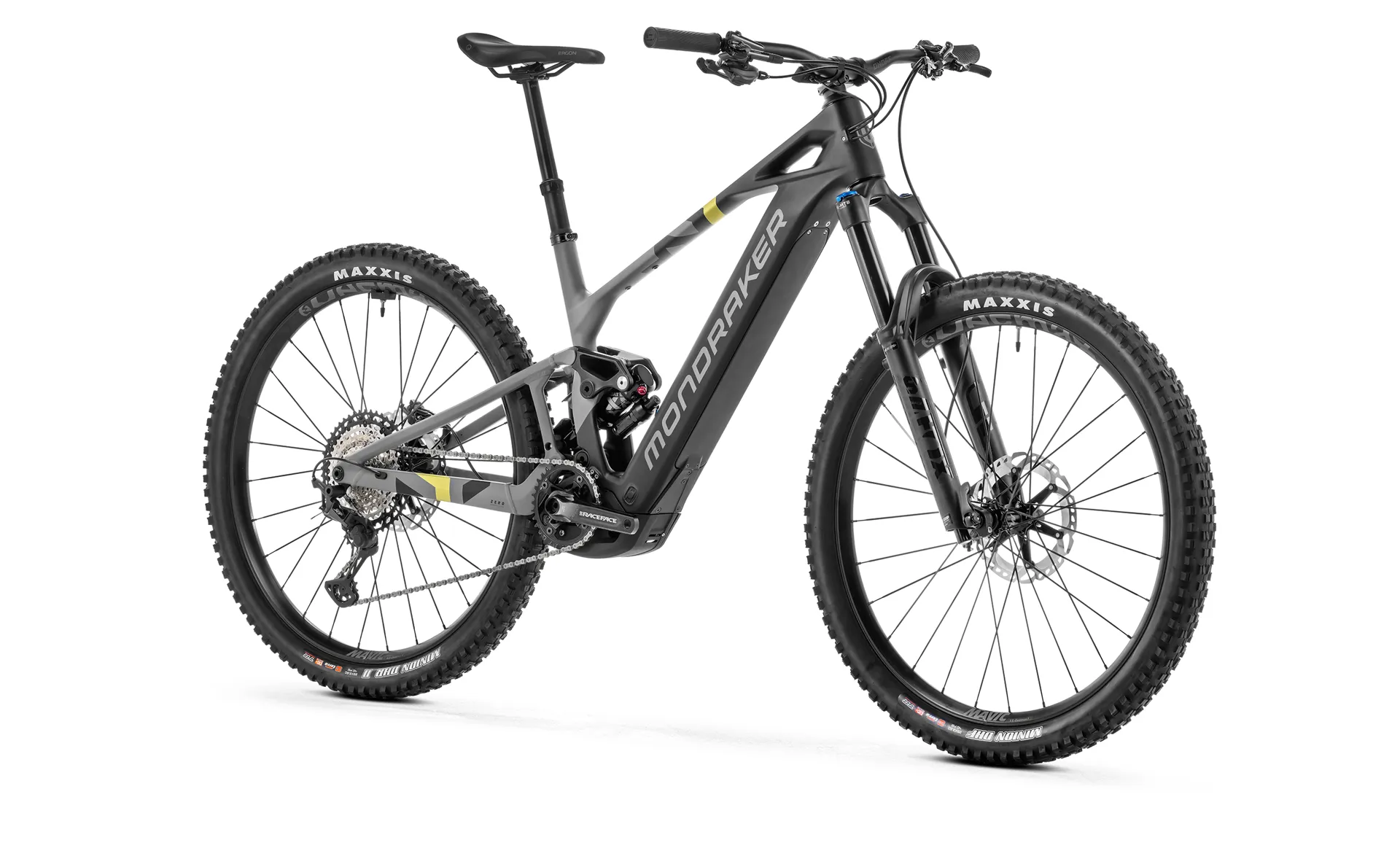

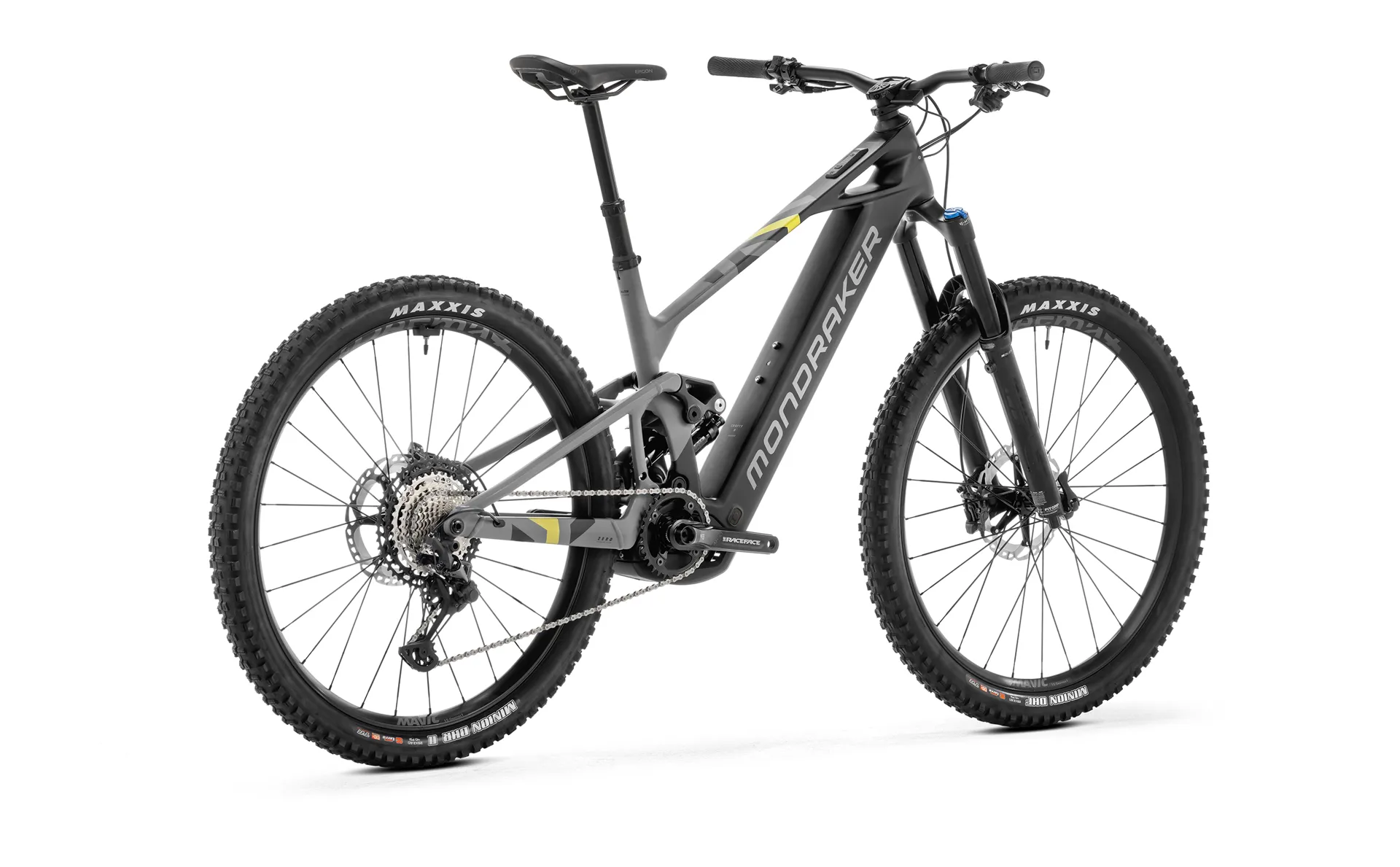

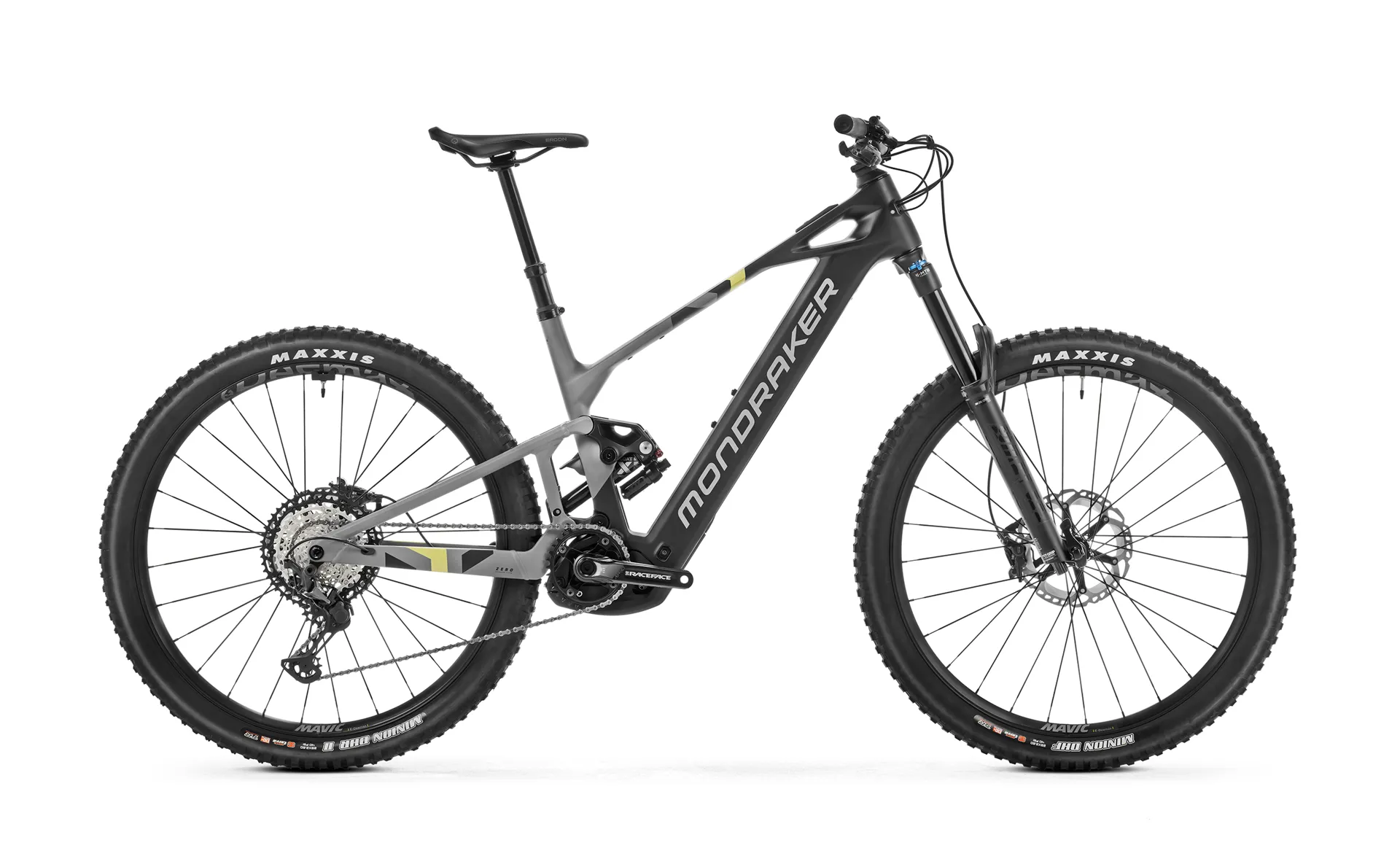

Mondraker CRAFTY CARBON R Black ML

Season:2025

Brand:Mondraker

Code:010.25338

Technical Information
  • Frame

    Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

    Sizes

    S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm

    Rear shock

    Fox Float-X LV Performance, 185x55mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

    Shock settings

    CS40 compression, RL60 rebound, Rezi B40, LML, 0.2 volume spacer

    Fork

    Fox 38 29 Float GRIP Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload

    Headset

    Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock

    Stem

    Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore

    Handlebar

    Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.

    Grips

    Onoff Forest, CNC lock-on, 135mm

    Seatpost

    Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)

    Saddle

    Ergon SM-10

    Front brake

    Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin

    Rear brake

    Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin

    Brake lever

    Shimano XT M8100, ergonomic antiskid lever with servo wave, tool less reach adjust, free stroke adjust

    Rims

    Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes

    Spokes

    Mavic J-bend double butted, contactless lacing

  • Front hub

    Mavic, Boost 15x110mm, IS 6 bolts

    Rear hub

    Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, MS freehub

    Front tire

    Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

    Rear tire

    Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

    Crankset

    Race Face Aeffect-R ebike, 160mm

    Rings

    Race Face, 34T, steel, direct mount

    Chain

    Shimano XT M8100, 12s

    Rear derrailleur

    Shimano XT M8100, SGS, Shadow+

    Shift levers

    Shimano XT M8100, Rapid Fire Plus, 12s

    Casette

    Shimano XT M8100 10-51T Hyperglide+, 12s

    Derailleur hanger

    Sram UDH

    Weight

    23,9 kg

    Display

    Purion 400 / Bosch Mini Remote / Bosch System Controller

    Motor

    New Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)

    Battery

    Bosch Powertube 800Wh
